Bring your plumber's list and we will check the sizes and quantities with you before you buy.
Hot and cold water supply lines rated for continuous use around 93°C.

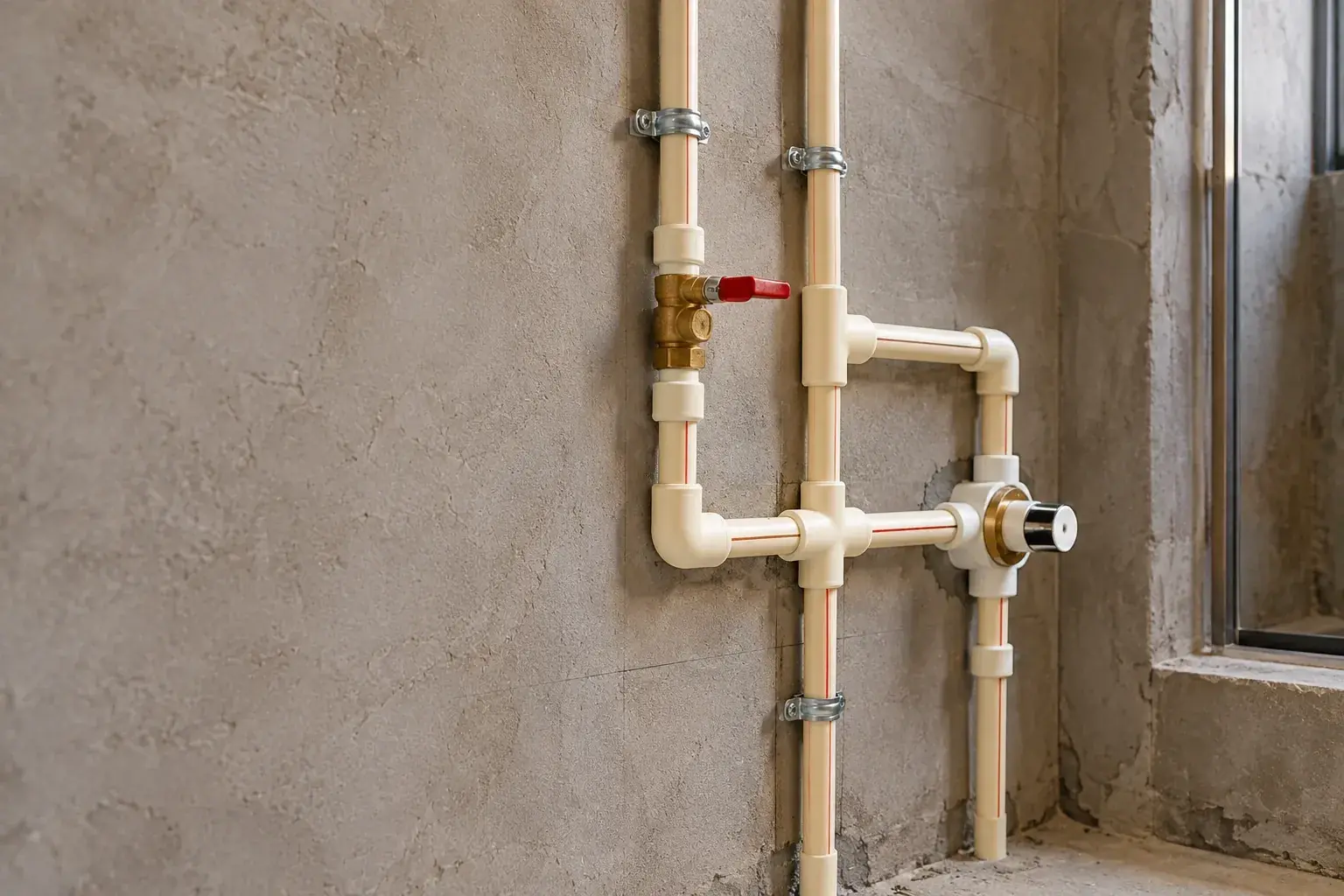

The correct material for every line carrying hot water. Joined with solvent cement, which chemically fuses the pipe rather than gluing it — cut square, clean both faces and respect the cure time.
Cold water supply, borewell lines and tank connections.
Rigid, corrosion-proof and cheaper than CPVC — but it softens above roughly 60°C, so it must never carry hot water. Using UPVC on a geyser line is the most common and most expensive plumbing mistake.
Soil, waste and vent lines for bathrooms and kitchens.
110 mm for the WC soil line, 75 mm for floor traps and basin waste. What actually decides whether drainage works is the fall — aim for roughly a 1:40 to 1:60 gradient on horizontal runs.
Overhead, loft and underground tanks in multi-layer construction, from 500 L upward.
Plan at roughly 135–150 litres per person per day, so a family of four typically needs 500–1,000 L overhead, with more in an underground sump where supply is intermittent. Multi-layer tanks resist algae and heat better.
Zoloto ball, gate and non-return valves to isolate and control water lines.
Fit an isolation valve on the main inlet, at the tank outlet and on each bathroom branch, so one leak never means shutting off the whole house. A non-return valve after a pump stops the line draining back each time it switches off.
Categories shown represent the range stocked at our Udaipur showroom. Price bands are indicative market ranges to help you budget — not quotations. Contact us for current pricing and available models.
CPVC for hot and cold water supply — rated for continuous use around 93°C. UPVC for cold water supply only. PVC for drainage, waste and vent lines, which are gravity-fed and carry no pressure.
Using UPVC on a geyser line is the most common and most expensive plumbing mistake, because the failure is a slow weep behind finished tiling.
½ inch for individual fixture connections — basin, WC, health faucet. ¾ inch for branch lines feeding a bathroom and for most geyser connections.
1 inch for the main down-take from the overhead tank. Undersizing the down-take is a common cause of disappointing flow on upper floors.
Most CPVC failures are installation failures. Cut square with a pipe cutter, deburr inside and out, apply cement to both surfaces, insert with a quarter turn and hold for 30 seconds.
Then wait before pressure testing — cure time depends on ambient temperature and pipe size. In Udaipur’s summer heat curing is fast; in winter it needs longer than people assume. CPVC and PVC cements are not interchangeable.
Most Udaipur homes feed from an overhead tank, so a length of pipe sits on the terrace in full sun. Sustained Rajasthan UV makes CPVC brittle over years.
Paint exposed runs with a light-coloured acrylic paint, lag them, or route them inside a duct. Cheap at installation, annoying to retrofit.
A common planning figure is 135–150 litres per person per day, so a family of four typically needs 500–1,000 litres of overhead storage.
Where municipal supply is intermittent, add underground sump capacity on top of that rather than oversizing the overhead tank, which loads the roof slab.
What actually determines whether drainage works is not the pipe but the fall. Aim for roughly a 1:40 to 1:60 gradient on horizontal runs.
Too flat and solids settle; too steep and water outruns the solids, which blocks just as effectively.
What actually matters when you are choosing — the questions worth settling before you buy.
Send your requirement and we’ll come back with options at different budget levels.
What customers ask most often about pipes & water tanks in udaipur — sizing, fitting, warranty and what to decide first.
Tell us what you're building and we'll help you specify the right products for your space, water pressure and budget — with no obligation to buy.
